Exon-Level Feature Matrix Analysis with SCANPY

This script demonstrates that exon-level count matrices, instead of the conventional gene-level inputs, can still yield meaningful cell embeddings using the SCANPY pipeline. It highlights that the feature matrix alone carries rich biological information suitable for single-cell analysis.

[9]:

import os
import pandas as pd
import scanpy as sc
import numpy as np
import anndata

[10]:

sc.settings.verbosity = 3             # verbosity: errors (0), warnings (1), info (2), hints (3)
sc.logging.print_header()
sc.settings.set_figure_params(dpi=80, facecolor='white')

scanpy==1.10.4 anndata==0.11.1 umap==0.5.7 numpy==2.0.2 scipy==1.15.3 pandas==2.2.3 scikit-learn==1.5.2 statsmodels==0.14.4 igraph==0.9.10 pynndescent==0.5.13

[11]:

adata = sc.read_h5ad("/mnt/data/kailu9/DOLPHIN_run_input_output/DOLPHIN_tutorial/data/Feature_fsla.h5ad")

[12]:

adata

[12]:

AnnData object with n_obs × n_vars = 795 × 354386
    obs: 'CB', 'celltype1', 'celltype2'
    var: 'gene_id', 'gene_name'

[13]:

import matplotlib.pyplot as plt

df_adata = adata.to_df()
non_zero_counts = (df_adata != 0).sum(axis=1)
plt.figure(figsize=(6, 4))
plt.hist(non_zero_counts, bins=50, edgecolor='black')
plt.xlabel('Number of Non-Zero Exons per Cell')
plt.ylabel('Frequency')
plt.title('Distribution of Non-Zero Exons per Cell')
plt.tight_layout()
plt.show()

../_images/examples_feature_matrix_scanpy_5_0.png

[14]:

sc.pl.highest_expr_genes(adata, n_top=20, )

normalizing counts per cell
    finished (0:00:00)

../_images/examples_feature_matrix_scanpy_6_1.png

[15]:

sc.pp.filter_genes(adata, min_cells=3)

filtered out 168356 genes that are detected in less than 3 cells

[16]:

adata.var['mt'] = adata.var_names.str.startswith('MT-')  # annotate the group of mitochondrial genes as 'mt'
sc.pp.calculate_qc_metrics(adata, qc_vars=['mt'], percent_top=None, log1p=False, inplace=True)

[17]:

sc.pl.violin(adata, ['n_genes_by_counts', 'total_counts', 'pct_counts_mt'],
             jitter=0.4, multi_panel=True)

../_images/examples_feature_matrix_scanpy_9_0.png

[18]:

sc.pl.scatter(adata, x='total_counts', y='pct_counts_mt')
sc.pl.scatter(adata, x='total_counts', y='n_genes_by_counts')

../_images/examples_feature_matrix_scanpy_10_0.png

../_images/examples_feature_matrix_scanpy_10_1.png

[19]:

sc.pp.normalize_total(adata)

normalizing counts per cell
    finished (0:00:00)

[20]:

sc.pp.log1p(adata)

[21]:

sc.pp.highly_variable_genes(adata, n_top_genes=2000)

extracting highly variable genes

/mnt/data/kailu9/miniconda3/envs/DOLPHIN/lib/python3.10/site-packages/numba/np/ufunc/parallel.py:371: NumbaWarning: The TBB threading layer requires TBB version 2021 update 6 or later i.e., TBB_INTERFACE_VERSION >= 12060. Found TBB_INTERFACE_VERSION = 12050. The TBB threading layer is disabled.
  warnings.warn(problem)

    finished (0:00:00)
--> added
    'highly_variable', boolean vector (adata.var)
    'means', float vector (adata.var)
    'dispersions', float vector (adata.var)
    'dispersions_norm', float vector (adata.var)

[22]:

sc.pl.highly_variable_genes(adata)

/mnt/data/kailu9/miniconda3/envs/DOLPHIN/lib/python3.10/site-packages/IPython/core/pylabtools.py:170: UserWarning: Creating legend with loc="best" can be slow with large amounts of data.
  fig.canvas.print_figure(bytes_io, **kw)

../_images/examples_feature_matrix_scanpy_14_1.png

[23]:

adata.raw = adata

[24]:

adata = adata[:, adata.var.highly_variable]

[ ]:

sc.pp.regress_out(adata, ["total_counts", "pct_counts_mt"])
sc.pp.scale(adata, max_value=10)

regressing out ['total_counts', 'pct_counts_mt']

/mnt/data/kailu9/miniconda3/envs/DOLPHIN/lib/python3.10/site-packages/scanpy/preprocessing/_simple.py:672: UserWarning: Received a view of an AnnData. Making a copy.
  view_to_actual(adata)

    sparse input is densified and may lead to high memory use
    finished (0:00:16)

[26]:

sc.tl.pca(adata, svd_solver='arpack')

computing PCA
    with n_comps=50
    finished (0:00:22)

[27]:

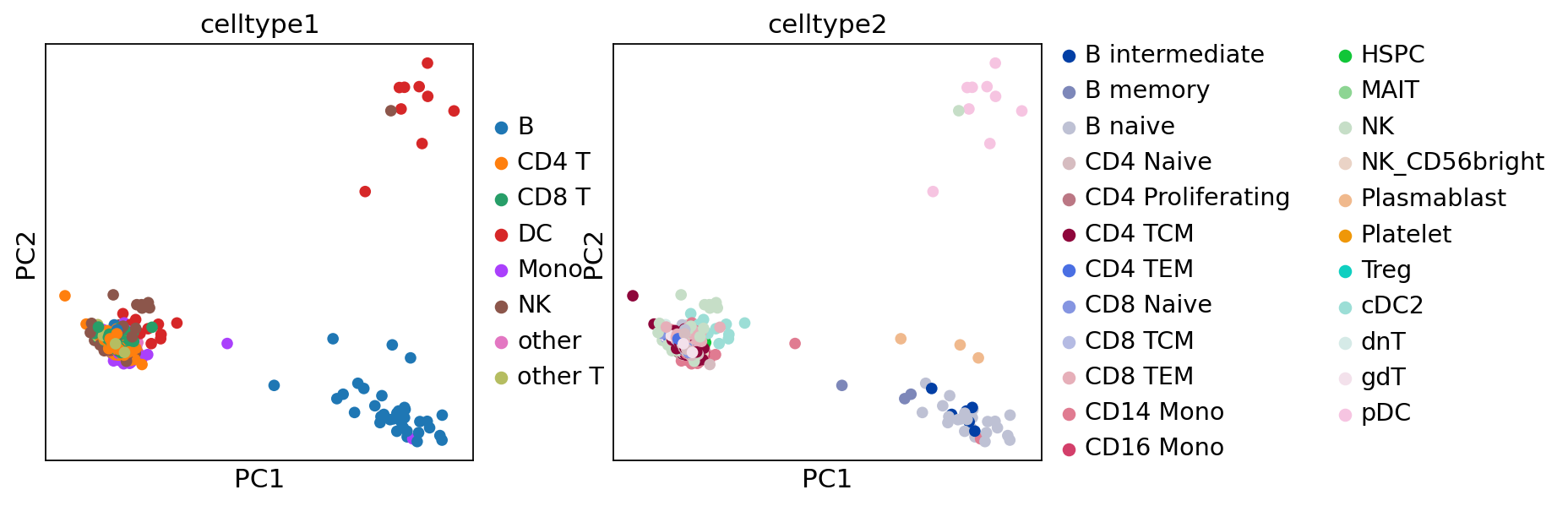

sc.pl.pca(adata, color=["celltype1", "celltype2"])

../_images/examples_feature_matrix_scanpy_19_0.png

[28]:

sc.pl.pca_variance_ratio(adata, log=True)

../_images/examples_feature_matrix_scanpy_20_0.png

[29]:

sc.pp.neighbors(adata, n_neighbors=10, n_pcs=40)

computing neighbors
    using 'X_pca' with n_pcs = 40
    finished: added to `.uns['neighbors']`
    `.obsp['distances']`, distances for each pair of neighbors
    `.obsp['connectivities']`, weighted adjacency matrix (0:00:08)

[30]:

## choose the resolution which produce the same number of clusters as the celltype1
for res in np.arange(0.0,2,0.01):
    sc.tl.leiden(adata, res)
    if len(set(adata.obs["leiden"])) == len(set(adata.obs["celltype1"])):
        break

running Leiden clustering
    finished: found 1 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering

/tmp/ipykernel_882402/1209000394.py:3: FutureWarning: In the future, the default backend for leiden will be igraph instead of leidenalg.

 To achieve the future defaults please pass: flavor="igraph" and n_iterations=2.  directed must also be False to work with igraph's implementation.
  sc.tl.leiden(adata, res)

    finished: found 2 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 3 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 4 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 4 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 4 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 6 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 7 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)
running Leiden clustering
    finished: found 8 clusters and added
    'leiden', the cluster labels (adata.obs, categorical) (0:00:00)

[31]:

sc.tl.umap(adata)

computing UMAP
    finished: added
    'X_umap', UMAP coordinates (adata.obsm)
    'umap', UMAP parameters (adata.uns) (0:00:06)

[32]:

sc.pl.umap(adata, color=["leiden", "celltype1", "celltype2"])

../_images/examples_feature_matrix_scanpy_24_0.png

[33]:

from sklearn.metrics import adjusted_rand_score

[34]:

adjusted_rand_score(adata.obs["celltype1"], adata.obs["leiden"])

[34]:

0.5485096458778487
